The Spartan zkSNARK framework

tl;dr: What a beautiful construction!

Introduction

Spartan¹$^,$² is a framework for building zkSNARK schemes using the well-known sumcheck protocol³$^,$⁴ and a sparse multilinear (MLE) polynomial commitment scheme (PCS).

Spartan is a SNARK for R1CS satisfiability. Usually, such R1CS SNARKs are built by viewing the R1CS as a QAP. Spartan doesn’t really do that: it works directly with the R1CS matrices.

A consequence of this seems to be that its proving time is, at best, $\Omega(n)$ where $n$ is the maximum number of non-zero entries in one of the three R1CS matrices. In contrast, SNARKs for QAP like Groth16 tend to have proving times of $\omega(\max{(N,m)})$ where $N$ is the number of R1CS constraints (i.e., number of rows in the matrix) and $m$ is the number of R1CS variables (i.e., number of columns). For example, Groth16 pays $O(N\log N)$ FFT work and $O(M) + O(N)$ MSMs (see breakdown here).

Why I really like Spartan

1. Most of the prover work is delegatable, publicly!
2. Sumcheck-based, either multivariate or univariate
   • $\Rightarrow$ linear-time (concretely-efficient) prover!
3. PCS-based, multilinear or univariate, depending on choice of sumcheck ☝️
4. It poses a very nice research question: What is the most efficient PCS for sparse MLEs?
5. For structured / repetitive / uniform circuits, Spartan’s most expensive step can be done by the verifier!

Technical overview

(Universal) setup:

1. R1CS matrices as MLEs $\tilde{A},\tilde{B},\tilde{C}$
2. Commit to them via a sparse MLE PCS $\Rightarrow$ get a universal setup!

Proving:

1. Commit to the MLE extension $\tilde{Z}(\Y)$ of the statement-witness vector $\z = (\stmt, 1, \witn)$ containing the statement and witness
2. Reduce R1CS satisfiability to zerocheck on $F(\X) = \sum_\j \tilde{A}(\X,\j)\tilde{Z}(\j) \sum_\j\tilde{B}(\X,\j)\tilde{Z}(\j) - \sum_\j \tilde{C}(\X,\j)\tilde{Z}(\j)$ over boolean hypercube
3. Reduce zerocheck to 0-sumcheck on $F(\X)\eq_\btau(\X)$ where $\tau$ is a random point
4. Reduce 0-sumcheck to opening $F(\X)$ at $\X=\r_x$ for a random point $\r_x$
5. Reduce $F(\r_x)$ opening to three (batched) sumchecks on $\tilde{V}(\r_x, \Y)\tilde{Z}(\Y)$, for all R1CS matrices $V \in \{A,B,C\}$
   • Just swap in $\X=\r_x$ into the $F(\X)$ expression above and note that all you need are these three sums!
6. Reduce the batched sumchecks to openings under a random point $\r_y$
   • of $\tilde{Z}(\r_y)$
   • of $\tilde{V}(\r_x,\r_y)$ for all R1CS matrices $V\in\{A,B,C\}$
     • This last part is really key, because the proving cost is mostly affected by the sparse MLE PCS we use for $\tilde{V}$

Preliminaries

We assume familiarity with the multivariate sumcheck protocol⁴ and multilinear extension (MLE) polynomial commitment schemes (PCS) such as PST⁵.

Notation

• We use $[s) \bydef \{0,1,\ldots,s-1\}$
• We refer to a sumcheck that verifies a polynomial sums to 0 over the hypercube as a 0-sumcheck
• We assume all algorithms have oracle access to the same Fiat-Shamir transcript $\FS$
• We typically denote the boolean hypercube of size $2^s$ as $\binS$
• We use $a\fsget S$ to denote sampling from a set $S$ in a deterministic manner using the Fiat-Shamir transcript $\FS$ derived so far
• We often use $\tilde{V}$ to refer the MLE of a vector or matrix $V$.

Binary vectors

We often need to go from a number $b \in [0,2^s)$ to its binary representation as a vector $\b\in\binS$, and viceversa: \begin{align} \b = [b_0,\ldots,b_{s-1}],\ \text{s.t.}\ b = \sum_{i\in[s)} b_i 2^i \end{align}

When, clear from context, we switch between the number $b$ and its binary vector representation $\b$.

$\mathsf{eq}(\mathbf{X};\mathbf{b})$ Lagrange polynomials

We want to define a polynomial $\eq$ such that that: \begin{align} \forall \X,\b\in\binS, \term{\eq(\X;\b)} &\bydef \begin{cases} 1,\ \text{if}\ \X = \b\\
0,\ \text{if}\ \X \ne \b \end{cases}\\
\end{align}

How? \begin{align} \label{eq:lagrange} \term{\eq(\X;\b)} &\bydef \prod_{i\in[s)}\left(b_i X_i + (1 - b_i) (1 - X_i)\right)\\
%&\bydef \term{\eq(X_1,\ldots, X_s; b_1,\ldots,b_s)}\\
&\bydef \term{\eq_\b(X_0,\ldots, X_{s-1})},\b\in\binS\\
&\bydef \term{\eq_b(X_0,\ldots, X_{s-1})},b\in[2^s)\\
\end{align}

We use $b\in[2^s)$ and $\b\in\binS$ interchangeably, when clear from context. We mostly use $\eq_b(\X)$ and do not explicitly include the number of variables $s$, which is clear from context.

Multilinear extensions (MLEs)

Given a vector $V = [V_0, \ldots V_{n-1}]$, where $n = 2^\ell$, it can be represented as a degree-1 multivariate polynomial with $\ell$ variables, a.k.a. a multilinear extension (MLE), by interpolation via the Lagrange polynomials from above: \begin{align} \label{eq:mle} \tilde{V}(\X) \bydef \sum_{i\in [n)} V_i \cdot \eq_i(\X) \end{align} This way, if $\i=[i_0,\ldots,i_{s-1}]$ is the binary representation of $i$, we have: \begin{align} \tilde{V}(\i) = V_i,\forall i \in [n) \end{align}

Similarly, we can represent a matrix $(A_{i,j})_{i,j\in[m)}$ as an MLE: \begin{align} \label{eq:mle-matrix} \tilde{A}(\X,\Y) \bydef \sum_{i\in [m),j\in[m)} A_{i,j} \cdot \eq_i(\X)\eq_j(\Y) \end{align} This way, we similarly have: \begin{align} \tilde{A}(\i,\j) = A_{i,j},\forall i,j \in [n) \end{align}

Dense MLE PCS

Spartan uses a “dense” multilinear polynomial commitment scheme to commit to size-$2^s$ MLEs where most of the $2^s$ terms are non-zero.

$\dense.\setup(s)\rightarrow (\ck,\ok)$

Returns a commitment key $\ck$ used to commit to multilinear polynomials over $s$ variables and to create opening proofs and an opening key $\ok$ used to verify openings.

$\dense.\commit(\ck, \tilde{F})\rightarrow c$

Computes the commitment $c$ to the multilinear polynomial $\tilde{F}(X_0,\ldots,X_{s-1})$.

$\dense.\open^\FSo(\ck, \tilde{F}, \boldsymbol{a}) \rightarrow (e, \pi)$

Creates an opening proof $\pi$ arguing that $\tilde{F}(\boldsymbol{a}) = e$, for $a\in \F^s$ and $e\in \F$.

$\dense.\verify^\FSo(\ok, c, \boldsymbol{a}, b; \pi) \rightarrow \{0,1\}$

Verifies that the opening proof $\pi$ correctly argues that $\tilde{F}(\boldsymbol{a}) = b$ where $\tilde{F}$ is the polynomial committed in $c$.

Sparse MLE PCS

Let $m\bydef 2^s$. Spartan additionally needs a “sparse” multilinear polynomial commitment scheme used to commit to size-$m^2$ MLEs where most of the terms in the MLE are zero. For example, perhaps only $n = o(2^{2s})$ or $n = O(m)$ terms are non-zero.

Our sparse MLE PCS definition below is specialized for Spartan’s use case of committing to three MLEs for the sparse R1CS matrices! So, our algorithms always operate over these three (commitments to) matrices!

$\sparse.\setup(s, n)\rightarrow (\ck,\ok)$

Sets up a scheme for committing to three multilinear polynomials over $2s$ variables, such that each polynomial interpolates an $m\times m$ (R1CS) matrix with at most $n$ non-zero entries and $m\bydef 2^s$. Returns the commitment key $\ck$ and the opening key $\ok$. (Recall matrix interpolation from here.)

$\sparse.\commit(\ck, \tilde{A}, \tilde{B}, \tilde{C})\rightarrow (c_A, c_B, c_C)$

Returns commitments $(c_A, c_B, c_C)$ to the three MLEs of the $A,B$ and $C$ matrices.

$\sparse.\open^\FSo(\ck, (\tilde{A},\tilde{B},\tilde{C}), (\r_x,\r_y)) \rightarrow (e_a, e_b, e_c; \pi)$

Creates an opening proof $\pi$ arguing all the following evaluations hold: \begin{align} \label{eq:sparse-mle-evals} \tilde{A}(\r_x,\r_y) &= e_a\\
\tilde{B}(\r_x,\r_y) &= e_b\\
\tilde{C}(\r_x,\r_y) &= e_c\\
\end{align}

$\sparse.\verify^\FSo(\ok, (c_A,c_B,c_C), (\r_x,\r_y); \pi) \rightarrow \{0,1\}$

Verifies that the opening proof $\pi$ correctly argues that the evaluations in Eq. \ref{eq:sparse-mle-evals} hold for the MLEs committed in $c_A, c_B$ and $c_C$.

Multivariate sumcheck

$\SC.\prove^{\FSo}(F, T, s, d)\rightarrow (e,\pi;\r)$

Returns a sumcheck proof $\pi$ that the claimed sum $T=\sum_{\b \in \binS} F(\b)$ is valid iff. $F(\r) = e$, for some random $\r\fsget \F^s$, picked via Fiat-Shamir on the transcript so far (maintained via the $\FSo$ oracle). Here, $s$ denotes the number of variables in $F$ and $d$ denotes the maximum degree of a variable in $F$. Additionally, returns the evaluation claim $e$ and the randomness $\r$, so it can be verified separately outside this algorithm.

Note that the sumcheck proof merely reduces verifying the sum $T$ to verifying the evaluation claim $e\equals F(\r)$. Why do we formalize it in this way? Because it is very useful in higher-level protocols that use sumcheck! Such protocols tend to further reduce verifying the evaluation claim $e$ to yet another sumcheck, so returning an opening proof for $e$ here would not be useful for them (e.g., this happens in Step 4 of Spartan).

$\SC.\verify^\FSo(T, e, d; \pi)\rightarrow (b\in\{0,1\}; \r)$

Verifies the sumcheck proof $\pi$ that the claimed sum $T=\sum_{\b\in\binS} F(\b)$ is correct iff., for a previously-fixed polynomial $F$⁶ whose variables have max-degree $d$, we have $F(\r) = e$. As a result, the verifier must check outside this algorithm that $F(\r) = e$ against some oracle to $F$ (e.g., a polynomial commitment). Here, $\r\fsget\F^s$ is a random point derived via Fiat-Shamir. Returns a success bit $b\in\{0,1\}$ and the randomness $\r$ used.

Note that our sumcheck algorithms are non-interactive and assume a Fiat-Shamir⁷ oracle that maintains the transcript of messages sent by the prover to the verifier. This transcript is used to derive public randomness in the non-interactive setting (which, in the interactive setting, the verifier would just pick). This formalization, although a bit awkward, makes it easier to reason about securely-using sumcheck in a black-box fashion in our later description of Spartan.)

Multivariate zerocheck

We want to One of the tasks in Spartan is to prove a zerocheck on a polynomial $F$ (see Step 3), i.e.: \begin{align} F(\X) = 0, \forall \X\in \binS \end{align} There is a nice zerocheck-to-sumcheck reduction for this! Let: \begin{align} \label{eq:zerocheck} Q(\Y)\bydef \sum_{\b\in\binS} F(\b)\cdot\eq_\b(\Y) \end{align}

It can be shown that the zerocheck is equivalent to picking a random $\btau\in\F^s$ and checking: \begin{align} \label{eq:q-tau} Q(\btau) = \sum_{\b\in\binS} F(\b)\cdot \eq_\b(\btau) &= 0\Leftrightarrow\\
\label{eq:0-sumcheck} \sum_{\b\in\binS} F(\b)\cdot \eq_\btau(\b) &= 0 \end{align} In other words, it’s equivalent to doing a 0-sumcheck on $F(\X)\cdot\eq_\tau(\X)$ as per Eq. \ref{eq:0-sumcheck}!

What’s the intuition? It is simply checking that a random linear combination between the $F(\b)$’s and the random $\eq_\b(\tau)$ coefficients is zero! In fact, other polynomials could be used to represent the random coefficients. e.g., instead of $\eq_\b(\X)$ one could use $r_\b(\X) \bydef \prod_{\i\in \binS} X_i^{b_i}$.

R1CS

Spartan is a SNARK for R1CS satisfiability.

The R1CS matrices $\term{A}, \term{B}, \term{C}$ are assumed to be square (of $\term{m}$ rows and $m$ columns) and sparse, with $\term{n}$ non-zero entries.

The R1CS is said to be satisfiable if exists a statement-witness vector $\z\in \F^m$ such that: \begin{align} \label{eq:r1cs-sat} A \z \circ B \z = C \z \end{align} where: \begin{align} \label{eq:z} \term{\z} = (\term{\stmt}, 1, \term{\witn}) \in \mathbb{F}^{|\stmt|} \times \mathbb{F} \times \mathbb{F}^{m-|\stmt|-1} \end{align} with $\term{\stmt}$ being the public statement and $\term{\witn}$ being the private witness.

For convenience, an R1CS instance is defined as: \begin{align} \label{eq:r1cs-instance} \term{\inst} = (\mathbb{F},A,B,C,\stmt,m,n) \end{align}

Note that an R1CS instance $\inst$ includes the public statement $\stmt$, but not the private witness $\witn$. It also includes the R1CS (square) matrix size $m$ and the # of non-zero entries $n$.

An R1CS instance is said to be satisfiable iff. exists a private witness $\witn$ s.t. Eq. $\ref{eq:r1cs-sat}$ holds. We also say the instance is satisfied by $\witn$.

Spartan PIOP explanation

We focus this blog post on explaining how Spartan obtains a SNARK (no ZK) by reducing R1CS satisfiability (from Eq. \ref{eq:r1cs-sat}) to two sumchecks, a dense MLE PCS opening and a sparse MLE PCS opening.

This section describes things from the lens of polynomial interactive oracle proofs (PIOPs), so it assumes interaction between the SNARK prover and the verifier.

Later on, we more formally describe the Spartan framework to construct a SNARK from:

1. the sumcheck protocol
2. a dense MLE PCS
3. a sparse MLE PCS (typically, obtained via Spartan’s dense-to-sparse MLE compiler called Spark)

Notation: Let $\term{s}=\lceil \log{m} \rceil$, where $\log$’s base is always 2.

(1) MLEs of R1CS matrices, public statement and private witness

We represent the R1CS matrices $A$, $B$ and $C$ as multilinear extensions (MLE) $\term{\tilde{A}}, \term{\tilde{B}},\term{\tilde{C}}$ (see Eq. \ref{eq:mle-matrix}).

Let:

1. $\term{\tilde{P}}$ denote the size $2^{s-1}$ MLE of only the public statement $(\stmt, 1)\in \F^{m/2}$
2. $\term{\tilde{W}}$ denote the size $2^{s-1}$ MLE of only the private witness $\witn\in \F^{m/2}$
   • Note: We assume, without loss of generality, that $|\witn| = |\stmt|+1$
3. $\z \bydef (\stmt, 1, \witn) \in \mathbb{F}^m$ denote the statement-witness vector, as per Eq. \ref{eq:z}
4. $\term{\tilde{Z}}$ denote the size-$2^s$ MLE of $\z$

As an MLE, $\tilde{Z}$ can be decomposed⁸ into its left half $\tilde{P}$ and right half $\tilde{W}$: \begin{align} \label{eq:Z} \term{\tilde{Z}}(\Y) &= Y_0 \cdot \underbrace{\term{\tilde{P}}(Y_1, \ldots, Y_{s-1})}_{\text{MLE for}\ (\stmt,1)} + (1-Y_0)\cdot \underbrace{\term{\tilde{W}}(Y_1,\ldots,Y_{s-1})}_{\text{MLE for}\ \witn} \end{align}

The prover begins by sending the verifier an oracle $\oracle{\tilde{W}}$ to $\tilde{W}$. This means the verifier will also have an $\oracle{\Z}$ to $\Z$, which is important later on. (Recall we are describing Spartan from the lens of PIOPs.)

(2) R1CS satisfiability $\Leftarrow$ degree-2 zerocheck on $F(\X)$

Then, satisfiability of an R1CS instance $A,B,C$ with public input $\stmt$ by witness $\witn$ can be expressed as:

\begin{align} \forall\ \text{rows}\ i\in[m), \sum_{j\in[m)} A_{i,j} z_j \cdot \sum_{j\in[m)} B_{i,j} z_j - \sum_{j\in[m)} C_{i,j} z_j = 0\Leftrightarrow\\
\forall\ \i\in\binS, \sum_{\j\in\binS} \tilde{A}(\i,\j) \tilde{Z}(\j) \cdot \sum_{\j\in\binS} \tilde{B}(\i,\j) \tilde{Z}(\j) - \sum_{\j\in\binS} \tilde{C}(\i,\j) \tilde{Z}(\j) = 0 %\Leftrightarrow\\
%\forall \x\in \binS, \sum_{\j\in\binS} \tilde{A}(\x,\j) \tilde{Z}(\j) \cdot \sum_{\j\in\binS} \tilde{B}(\x,\j) \tilde{Z}(\j) - \sum_{\j\in\binS} \tilde{C}(\x,\j) \tilde{Z}(\j) = 0\Leftrightarrow\\
\end{align} To prove the above equation holds, define a multivariate polynomial $\term{F}$ associated with the R1CS instance $\inst$: \begin{align} \label{eq:F} \term{F(\X)} &\bydef \sum_{\j\in\binS} \tilde{A}(\X,\j) \tilde{Z}(\j) \cdot \sum_{\j\in\binS} \tilde{B}(\X,\j) \tilde{Z}(\j) - \sum_{\j\in\binS} \tilde{C}(\X,\j) \tilde{Z}(\j) \end{align}

Note that $F(\X)$ contains a product of two MLEs, so it is a degree-2 multivariate polynomial.

Then, the main result of Spartan can be stated as a theorem:

An R1CS instance $\inst$ (see Eq. \ref{eq:r1cs-instance}) is satisfied by a witness $\witn \Leftrightarrow F(\X) = 0$ for all $\X \in \binS$ (i.e., $F$ is zero on the hypercube).

(3) Zerocheck on $F(\boldsymbol{X})$ $\Leftarrow$ degree-3 0-sumcheck on $F(\boldsymbol{X})\eq_\btau(\boldsymbol{X})$

We know from above that a zerocheck on $F$ can be reduced to a 0-sumcheck on another related polynomial: \begin{align} \label{eq:G} F(\X)\cdot \eq_\term{\btau}(\X) \end{align} where $\term{\btau}\randget\F^s$ is randomly picked by the verifier. Specifically, the sumcheck will be: \begin{align} \label{eq:first-sumcheck} \sum_{\b\in\binS} F(\b)\cdot \eq_\btau(\b) \equals 0 \end{align}

To convince the verifier, the prover will send two things.

First, an evaluation at a random point $\term{\r_x}\in \F^s$ picked by the verifier: \begin{align} \label{eq:ex} \term{e_x} \bydef F(\term{\r_x})\cdot \eq_\btau(\term{\r_x}) \end{align}

Second, a sumcheck proof $\term{\pi_x}$, which the verifier will check against the claimed sum (i.e., 0) and the evaluation $e_x$ (as per the sumcheck protocol⁴).

We refer to the sumcheck from Eq. \ref{eq:first-sumcheck} as Spartan’s first sumcheck!

Once the sumcheck proof is verified, the remaining verifier work is checking that the $e_x$ evaluation from Eq. \ref{eq:ex} is correct!

Fortunately, verifying the $\eq_\btau(\r_x)$ part of $e_x$ is easy. Unfortunately, the $F(\r_x)$ part is trickier: $F$’s formula from Eq. \ref{eq:F} includes three other sums! Fortunately, Spartan observes that these sums can also be proved using sumcheck!

(4) Opening $F(\boldsymbol{r}_x)$ $\Leftarrow$ degree-2 sumchecks

How can the prover prove the $F(\r_x)$ evaluation?

First, expand it as per Eq. \ref{eq:F} to: \begin{align} \label{eq:Frx} F(\r_x) &= \sum_{\j\in\binS} \tilde{A}(\r_x,\j) \tilde{Z}(\j) \cdot \sum_{\j\in\binS} \tilde{B}(\r_x,\j) \tilde{Z}(\j) - \sum_{\j\in\binS} \tilde{C}(\r_x,\j) \tilde{Z}(\j)\\
\end{align} Denote the three sums above by: \begin{align} \label{eq:three-sumchecks} \term{v_A} &\bydef \sum_{\j\in\binS} \tilde{A}(\r_x,\j) \tilde{Z}(\j)\\
\term{v_B} &\bydef \sum_{\j\in\binS} \tilde{B}(\r_x,\j) \tilde{Z}(\j)\\
\term{v_C} &\bydef \sum_{\j\in\binS} \tilde{C}(\r_x,\j) \tilde{Z}(\j)\\
\end{align} such that: \begin{align} F(\r_x) &= v_A \cdot v_B - v_C \end{align}

Now, we have reduced verifying $F(\r_x)$ to verifying the three sumchecks from Eq. \ref{eq:three-sumchecks}!

(5) Degree-2 sumchecks $\Leftarrow$ Opening $Z(\r_y), A(\r_x,\r_y),\ldots, C(\r_x,\r_y)$

Luckily, the sumchecks from Eq. \ref{eq:three-sumchecks} can be batched into a single one (while remaining degree-2).

First, the verifier picks random scalars: \begin{align} \term{(r_A, r_B, r_C)}\randget\F^3\\
\end{align} Second, randomly combine the $v_A, v_B, v_C$ sumchecks via these scalars: \begin{align} \label{eq:batched-sumcheck} \term{T} &\bydef r_A v_A + r_B v_B + r_C v_C \\
&= r_A\left(\sum_{\j\in\binS} \tilde{A}(\r_x,\j) \tilde{Z}(\j)\right) + r_B\left(\sum_{\j\in\binS} \tilde{B}(\r_x,\j) \tilde{Z}(\j)\right) + r_C\left(\sum_{\j\in\binS} \tilde{C}(\r_x,\j) \tilde{Z}(\j)\right)\\
\label{eq:second-sumcheck} &= \sum_{\j\in\binS} \left(\underbrace{r_A \tilde{A}(\r_x,\j) \tilde{Z}(\j) + r_B \tilde{B}(\r_x,\j) \tilde{Z}(\j) + r_C \tilde{C}(\r_x,\j) \tilde{Z}(\j)}_{\term{M_{\r_x}(\j)}}\right)\\
\end{align} Now, the prover proves one sumcheck on the $\term{M_{\r_x}(\Y)}$ polynomial from above (instead of three as per Eq. \ref{eq:three-sumchecks}).

Small note: In practice, this single $M_{\r_x}$ sumcheck can be batched, carefully, so as to not blow up the size of the involved field elements from the $(r_A,r_B,r_C)$ random linear combination.

We refer to this Eq. \ref{eq:second-sumcheck} sumcheck as Spartan’s second sumcheck! (Recall the first one was in Eq. \ref{eq:first-sumcheck}).

As before, the prover sends a sumcheck proof $\term{\pi_y}$ that reduces verifying the claimed sum $T$ to verifying an evaluation $\term{e_y}\bydef M_{\r_x}(\term{\r_y})$ at a random $\term{\r_y}\in\F^s$ picked by the verifer.

To verify the $e_y$ evaluation, the verifier needs to check: \begin{align} e_y &\equals M_{\r_x}(\r_y) \Leftrightarrow\\
\label{eq:mrx-opening} &\equals \left( r_A \cdot \underbrace{\tilde{A}(\r_x,\r_y)}_{\term{a_{x,y}}} + r_B \cdot \underbrace{\tilde{B}(\r_x,\r_y)}_{\term{b_{x,y}}} + r_C \cdot \underbrace{\tilde{C}(\r_x,\r_y)}_{\term{c_{x,y}}} \right) \cdot \underbrace{\tilde{Z}(\r_y)}_{\term{e_z}}\\
&\equals (r_A \cdot \term{a_{x,y}} + r_B \cdot \term{b_{x,y}} + r_C \cdot \term{c_{x,y}}) \cdot \term{e_z} \end{align}

In theory (i.e., in the PIOP model), this is easy to do:

1. The verifier has oracles $\oracle{\tilde{A}},\oracle{\tilde{B}},\oracle{\tilde{C}} \Rightarrow$ it can query for the $(a_{x,y},b_{x,y},c_{x,y})$ evaluations
2. The verifier has a $\oracle{\tilde{Z}}$ oracle (recall from Eq. \ref{eq:Z}) $\Rightarrow$ it can also query for the $e_z$ evaluation

In practice, this is the most difficult task in Spartan: instantiating the PIOP model with the right sparse R1CS MLEs, so as to enable efficient opening proofs for the $(a_{x,y},b_{x,y},c_{x,y})$ evaluations.

Naive sparse MLE PCS

It’s useful to clarify why a naive sparse MLE PCS would be extremely-inefficient.

First, recall that:

• Every R1CS matrix is of size $m\times m\Rightarrow$ can be naively represented as a size-$m^2$ vector $V\Leftrightarrow$ a size-$m^2$ MLE.
• Every R1CS matrix is sparse $\Leftrightarrow$ around $n \approx m$ entries in $V$ are non-zero.

Even though committing to the sparse MLE $\tilde{V}$ could be done in $O(n)$, not $O(m^2)$ via a dense MLE PCS scheme (e.g., PST⁵), two problems remain:

1. The size of the structured reference string (SRS) could be $\Theta(m^2)$, which is too large
2. The opening time for $\tilde{V}(\r_x,\r_y)$ in all previously-known dense MLE PCS schemes is $\Theta(m^2)$! (Would love to hear if this is wrong.)

(6) Sparse MLE PCS $\Leftarrow$ sumcheck & dense MLE PCS (a.k.a., Spark)

To efficiently address the challenges above, Spartan proposes a compiler, called Spark.

Spark can take any dense MLE PCS for size-$n$ MLEs and turn it into a sparse one for size $m^2$ MLEs with only $n \approx m$ non-zero entries.

Recall that $m=2^s$ and that we have a size-$m^2$ MLE $\tilde{V}$ of a sparse R1CS matrix, say, $V=(V_{i,j})_{i,j\in[m)}$ with $n\approx m$ non-zero entries: \begin{align} \tilde{V}(\X,\Y) = \sum_{\i\in\binS,\j\in\binS} V_{i,j}\cdot\eq_i(\X)\eq_j(\Y) \end{align}

Spark’s goal is to come up with a sparse MLE PCS that can efficiently open $\tilde{V}(\r_x,\r_y)$ as per Eq. \ref{eq:mrx-opening}: \begin{align} \label{eq:r1cs-matrix-sumcheck} \tilde{V}(\r_x,\r_y) = \sum_{\i\in\binS,\j\in\binS} A_{i,j}\cdot\eq_i(\r_x)\eq_j(\r_y) \end{align}

How?

First, for each R1CS matrix $V$, the universal setup will commit to three dense MLEs representing the non-zero entries $V_{i,j}$ in the matrix and their locations $i,j$.

Denote the set of non-zero entries in a matrix $V$ by: \begin{align} %N_V \bydef \left(i_k,j_k,V_{i_k,j_k}\right)_{k\in[n)} \end{align}

Then, we can define three MLEs $\row,\col,\val : \F^{\log{n}} \rightarrow \F$ that represent this set as: \begin{align} \label{eq:rows-cols-vals} \forall k\in[n), \begin{cases} \term{\row(\k)} &= i_k \wedge {}\\
\term{\col(\k)} &= j_k \wedge {}\\
\term{\val(\k)} &= A_{i_k,j_k} \end{cases} %\row(\X) \bydef \sum_{\b\in\binS} \end{align} (These can be interpolated as usual.)

Now assume a function that converts a row or column index $i\in[m)$ (or $j\in[m)$) to its $s$-bit binary representation:

As a result, we can rewrite the R1CS matrix sumcheck from Eq. \ref{eq:r1cs-matrix-sumcheck} as: \begin{align} \label{eq:r1cs-sparse-sumcheck} \tilde{V}(\r_x,\r_y) &= \sum_{\i\in\binS,\j\in\binS} V_{i,j}\cdot\eq_i(\r_x)\cdot\eq_j(\r_y)\\
&= \sum_{\i\in\binS,\j\in\binS} V_{i,j}\cdot\eq_{\r_x}(\i)\cdot\eq_{\r_y}(\j)\\
&= \sum_{V_{i,j}\ne 0} V_{i,j}\cdot\eq_{\r_x}(\i)\cdot\eq_{\r_y}(\j)\\
\label{eq:r1cs-dense-sumcheck} &= \sum_{k\in[n)} \val(\k)\cdot\eq_{\r_x}(\bits(\row(\k)))\cdot\eq_{\r_y}(\bits(\col(\k)))\\
%&\bydef \sum_{k\in[n)} \val(\k)\cdot\eqr{V}(\k,\r_x)\eqc{V}(\k,\r_y)\\
\end{align}

Unfortunately, the expression being summed over above in Eq. \ref{eq:r1cs-dense-sumcheck} is not a polynomial. This is because $\bits$’s domain is $[m)$ and we cannot evaluate it on arbitrary field elements in $\F$.

My understanding so far is that Spark is an efficient protocol for “linearizing” the $\eq_{\r_x}(\bits(\row(\r_k)))$ expression into an MLE that agrees with it over hypercube (and its $\col$ counterpart).

Describe the Spark approach, later refined by Lasso⁹ and Shout¹⁰.

Spartan PIOP framework for (non-ZK) SNARKs

We describe Spartan as a framework for obtaining (non-ZK) SNARKs given a dense MLE PCS $\dense$ and a sparse MLE PCS $\sparse$ (from a compiler like Spark¹).

$\mathsf{Spartan}_{\mathcal{D},\mathcal{S}}.\mathsf{Setup}(A, B, C) \Rightarrow (\prk,\vk)$

Notation:

• $m\bydef 2^s$ denote the number of rows and columns in the square R1CS matrices $A,B,C$
• $n_A,n_B,n_C$ denote the max number of non-zero entries in $A,B$ and $C$, respectively
• $n\gets \max{(n_A,n_B,n_C)}$

Set up the dense and sparse PCSs:

• $(\ck_\dense,\ok_\dense)\gets \dense.\setup(s-1)$
• $(\ck_\sparse,\ok_\sparse)\gets \sparse.\setup(s, n)$

Commit to the R1CS matrices:

• $(c_A,c_B,c_C) \gets \sparse.\commit(\ck_\sparse, \tilde{A}, \tilde{B}, \tilde{C})$

Bureaucratically track the commitments and the PCS’s opening keys and commitments keys:

• $\vk\gets (c_A,c_B,c_C,\ok_\dense,\ok_\sparse)$
• $\prk\gets (A,B,C,\vk, \ck_\dense,\ck_\sparse)$

$\mathsf{Spartan}_{\mathcal{D},\mathcal{S}}.\mathsf{Prove}^{\mathcal{FS}(\cdot)}(\mathsf{prk}, \mathbf{x}; \mathbf{w}) \Rightarrow \pi$

Recall $m\bydef 2^s$ is the # of rows and columns in the R1CS matrices.

Commit to the witness and set up the Fiat-Shamir transcript:

• $(\cdot,\cdot,\cdot,\vk,\ck_\dense,\cdot)\parse \prk$
• Let $W \bydef \witn\in \F^{m/2}$
• $c_\witn\gets\dense.\commit(\ck_\dense,\tilde{W})$
• add $(\vk,c_\witn)$ to $\FS$ transcript

Prove the first sumcheck:

• $\btau \fsget \F^s$
• Let $Z \bydef (\stmt, 1, \witn)\in \F^m$
• Let $F(\X) \bydef \sum_{\j\in\binS} \tilde{A}(\X,\j) \tilde{Z}(\j) \cdot \sum_{\j\in\binS} \tilde{B}(\X,\j) \tilde{Z}(\j) - \sum_{\j\in\binS} \tilde{C}(\X,\j) \tilde{Z}(\j)$
• $(e_x, \pi_x; \r_x\in\F^s) \gets \SC.\prove(F\cdot \eq_\btau, 0, s, 3)$ (see Eq. \ref{eq:F})

Prove the second sumcheck:

• $(r_A, r_B, r_C) \fsget \F^3$
• Let $M_{\r_x}(\Y) \bydef r_A \tilde{A}(\r_x,\Y) \tilde{Z}(\Y) + r_B \tilde{B}(\r_x,\Y) \tilde{Z}(\Y) + r_C \tilde{C}(\r_x,\Y) \tilde{Z}(\Y)$
• $v_A \gets \sum_{\j\in\binS} \tilde{A}(\r_x,\j) \tilde{Z}(\j)$
• $v_B \gets \sum_{\j\in\binS} \tilde{B}(\r_x,\j) \tilde{Z}(\j)$
• $v_C \gets \sum_{\j\in\binS} \tilde{C}(\r_x,\j) \tilde{Z}(\j)$
• $T\gets r_A v_A + r_B v_B + r_C v_C$
• $(e_y, \pi_y; \r_y) \gets \SC.\prove(M_{\r_x}, T, s, 2)$ (see Eq. \ref{eq:second-sumcheck})

Compute one dense and one sparse MLE opening:

• $(e_w, \pi_w) \gets\dense.\open^\FSo(\ck_\dense, \tilde{W},(r_{y,t})_{t\in[1,s)})$
• $(a_{x,y},b_{x,y},c_{x,y};\pi_{x,y})\gets \sparse.\open^\FSo\begin{pmatrix} \ck_\sparse, (\tilde{A}, \tilde{B}, \tilde{C}),%\\
  (\r_x,\r_y) \end{pmatrix}$

Done:

• $\pi\gets\spartanProof$

Prover time

• Witness-dependent:
  • dense MLE commitment to size-$m/2$ witness vector $W$ (would need ZK)
  • degree-3 sumcheck over $F(\X)\cdot \eq_\btau(\X)$ (would need ZK)
    • Recall $\tilde{Z}(\j) = z_j$, where $\z$ is the statement-witness vector from Eq. \ref{eq:z}
    • Recall $\eq_\btau(\X)$ is a size-1 MLE
    • Let $\tilde{V}’(\X) \bydef \sum_{\j \in \binS} \tilde{V}(\X,\j) z_j$ for every R1CS matrix $V\in\{A,B,C\}$
      • Note that $V(\X,\j)$ is a size-$m$ precomputable MLE for the $j$th column of matrix $V$
    • Sumcheck is over $\left(\tilde{A}’(\X)\cdot\tilde{B}’(\X) + \tilde{C}’(\X)\right)\cdot\eq_\btau(\X)$
  • degree-2 sumcheck over $M_{\r_x}(\Y)$ (would need ZK)
  • dense MLE opening for $\tilde{W}$ (would need ZK)
• Witness-independent:
  • sparse MLE openings for the R1CS matrices

Two $f_1(\r_1) = v_1,f_2(\r_2) = v_2$ MLE openings can be batched via a sumcheck: pick a random $\alpha\in\F$ and check that $v_1 + \alpha v_2 \equals \sum_\b \left(f_1(\b) \eq_{\r_1}(\b) + \alpha f_2(\b)\eq_{\r_2}(\b)\right)$ (This will further drive up the proof size though.)

Ideal proof size we can hope for

tl;dr: Not even accounting for the MLE openings, looks like it will be $> 80+2592+1952+192=4816$ bytes.

• $1 \times \Gr_1 + 1 \times \F$, for the dense MLE commitment $c_\witn$ to $W$ and the $e_w$ evaluation
  • i.e., $48+32 = 80$ bytes
• TODO: ideal dense MLE opening size, for $\pi_w$
• $((3+1)\log{m} + 1)\times \F$, for $(\pi_x, e_x)$
  • e.g., for $m=2^{20}\Rightarrow (4 \cdot 20 + 1)\cdot 32 = 81\cdot32 = 2592$ bytes
• $((2+1)\log{m} + 1)\times \F$, for $(\pi_y, e_y)$
  • e.g., for $m=2^{20}\Rightarrow (3 \cdot 20 + 1)\cdot 32 = 61\cdot32 = 1952$ bytes
• $6 \times \F$, for $v_A,v_B,v_C,a_{x,y},b_{x,y},c_{x,y}$
  • i.e., $6 \cdot 32 = 192$ bytes
• TODO: ideal sparse MLE opening size, for $\pi_{x,y}$

Unclear whether committing to the sumcheck univariate polynomials would help for small degrees like 2 and 3, since we’d need to also reveal evaluations and their (batched) proofs.

$\mathsf{Spartan}_{\mathcal{D},\mathcal{S}}.\mathsf{Verify}^{\mathcal{FS}(\cdot)}(\mathbb{x}; \mathbf{\pi}) \Rightarrow \{0,1\}$

Parse the proof and set up the Fiat-Shamir transcript:

• $\spartanProof\parse\pi$
• add $(\vk,c_\witn)$ to $\FS$ transcript

Verify the first sumcheck:

• $\btau \fsget \F^s$
• $(s_x; \r_x) \gets \SC.\verify^\FSo(0, e_x, 3; \pi_x)$
• assert $s_x \equals 1$
• assert $e_x \equals (v_A \cdot v_B - v_C)\cdot \eq_\btau(\r_x)$

Verify the second sumcheck:

• Let $P \bydef (\stmt, 1) \in \F^{m/2}$
• $(r_A, r_B, r_C) \fsget \F^3$
• $T\gets r_A v_A + r_B v_B + r_C v_C$
• $(s_y; \r_y) \gets \SC.\verify^\FSo(T, e_y, 2; \pi_y)$
• assert $s_y \equals 1$
• $z_y \gets \left(r_{y,0} \tilde{P}(r_{y,1},\ldots,r_{y,s-1}) + (1-r_{y,0})e_w\right)$
• assert $e_y \equals (r_A \cdot a_{x,y} + r_B \cdot b_{x,y} + r_C \cdot c_{x,y}) \cdot z_y$

Verify the $e_w \equals \tilde{W}(\r_y)$ opening:

• $(\cdot,\cdot,\cdot,\ok_\dense,\cdot) \gets \vk$
• assert $\dense.\verify^\FSo(\ok_\dense, c_\witn, (r_{y,t})_{t\in[1,s)}, e_w; \pi_w)$

Verify the R1CS MLE evaluations:

• $(c_A, c_B, c_C,\cdot,\ok_\sparse) \gets \vk$
• assert $\sparse.\verify^\FSo\begin{pmatrix} \ok_\sparse, (c_A, c_B, c_C), (\r_x, \r_y), (a_{x,y}, b_{x,y}, c_{x,y}); \pi_{x,y} \end{pmatrix}$

Succeed:

• return 1

Verifier time

• verify degree-3 sumcheck
• verify degree-2 sumcheck
• verify dense PCS opening
• verify sparse PCS opening

Conclusion

Cost of making it ZK? First, I think the dense MLE PCS for $\witn$ has to have hiding commitments with ZK openings. Second, the univariate polynomials in Spartan’s first and second sumchecks have to be blinded. And that’s it? Because the third sumcheck inside the sparse MLE PCS is on a public polynomial!

Generalize to non-square R1CS matrices with $N$ non-zero entries and $n$ rows / R1CS constraints, s.t. $n$ is not necessarily equal to $m$.

Acknowledgements

Thanks to Weijie Wang for explaining Spark¹. Thanks to Albert Garreta for explaining through Spartan, Spark and other multivariate protocols. Thanks to Justin Thaler, Kabir Peshawaria and Guru Vamsi Policharla for explaining many things about sumchecks, Spartan, and MLE PCSs.

Appendix

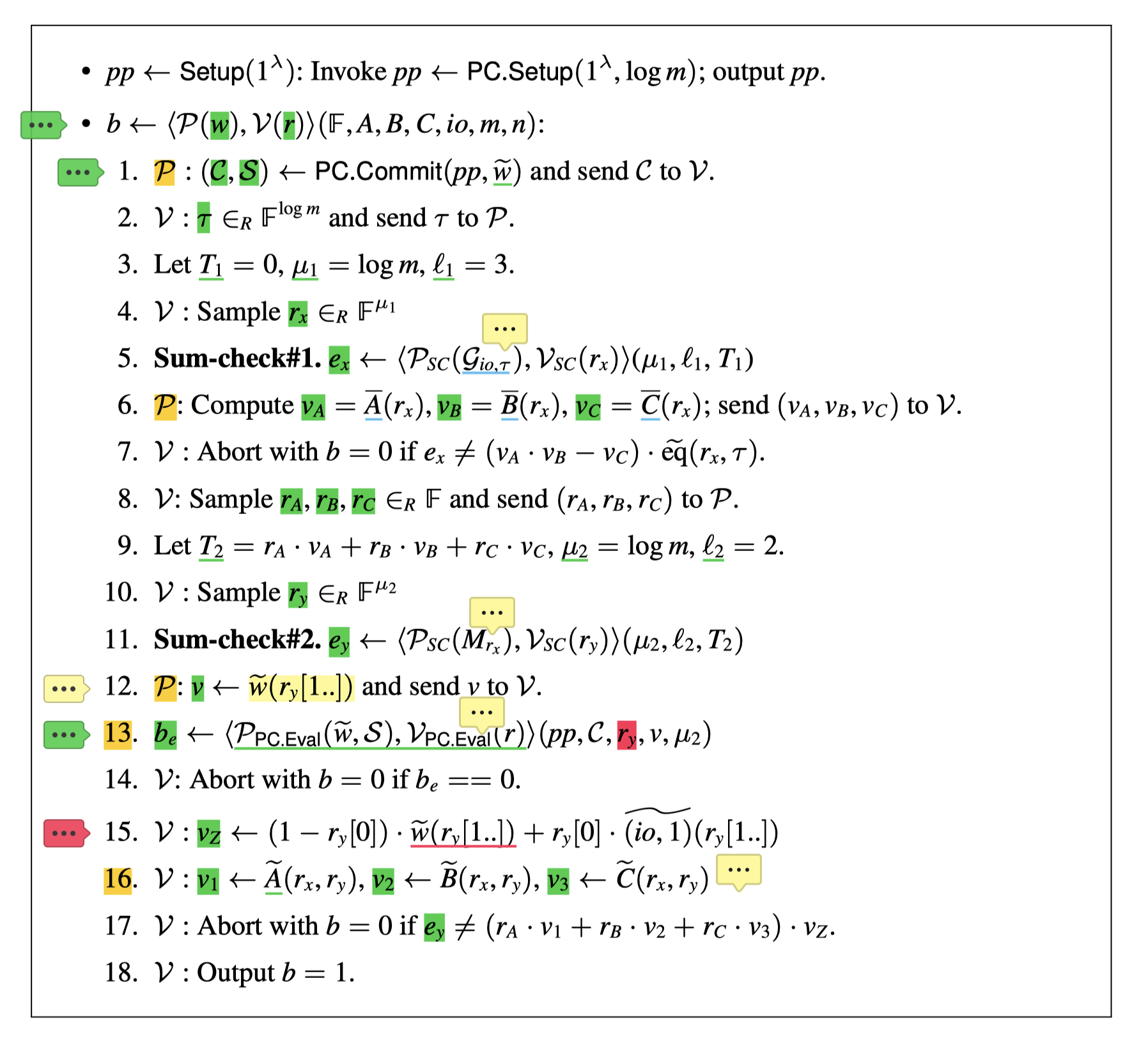

Spartan protocol from the original paper

Extra resources

• Srinath Setty’s HackMD on Spartan and Spark
• Sumcheck implementations, Kabir Peshawaria
  • Simpler Python code here

References

For cited works, see below 👇👇
