Hyrax polynomial commitment scheme



tl;dr: Hyrax is polynomial commitment scheme (PCS) with (1) sublinear commitment-and-proof sizes and (2) sublinear opening-and-verification times. Hyrax is constructed from Pedersen vector commitments and Bulletproofs inner product arguments (IPAs). Hyrax has information-theoretic hiding commitments and honest verifier zero-knowledge (HVZK) PCS openings.

$ \def\a{\vec{a}} \def\b{\vec{b}} \def\A{\vect{A}} \def\C{\vect{C}} \def\G{\vect{G}} \def\hyrax{\mathsf{Hyrax}} \def\hyraxnm{\hyrax^{n,m}} \def\hyraxSqN{\hyrax^{\sqN}} \def\hyraxSetup{\hyrax.\mathsf{Setup}} \def\hyraxZk{\hyrax_\mathsf{ZK}} \def\hyraxZknm{\hyraxZk^{n,m}} \def\hyraxZkSqN{\hyraxZk^{\sqN}} \def\hyraxZkSetup{\hyraxZk.\mathsf{Setup}} \def\ipa{\mathsf{IPA}} \def\ipaProve{\mathcal{P}_\ipa} \def\ipaVer{\mathcal{V}_\ipa} \def\r{\vect{r}} \def\sqN{\sqrt{N}} $

$ \def\bin{\{0,1\}} \def\eq{\mathsf{eq}} \def\SC{\mathsf{SumCheck}} \def\MLE#1{\mathsf{MLE}(#1)} \def\i{\boldsymbol{i}} \def\j{\boldsymbol{j}} \def\x{\boldsymbol{x}} \def\X{\boldsymbol{X}} \def\y{\boldsymbol{y}} \def\Y{\boldsymbol{Y}} $

$ \def\msm#1{\mathsf{msm}^{#1}} \def\fmsm#1#2{\mathsf{fmsm}^{#1}_{#2}} \def\vmsm#1#2{\mathsf{vmsm}^{#1}_{#2}} \def\Fmul#1{#1\ \red{\F}^\red{\times}} \def\Gadd#1{#1\ \green{\Gr}^\green{+}} \def\Gmul#1{#1\ \red{\Gr}^\red{\times}} \def\Fadd#1{#1\ \green{\F^+}} \def\pair{\mathbb{P}} \def\multipair#1{\mathbb{P}^{#1}} $

Preliminaries

  • For time complexities, we use:
    • $\Fadd{n}$ for $n$ field additions in $\F$
    • $\Fmul{n}$ for $n$ field multiplications in $\F$

    • $\msm{n}$ for a single multi-scalar multiplication (MSM) in $\Gr$ of size $n$

    • $\fmsm{n}{< B}$ for a single multi-scalar multiplication (MSM) in $\Gr$ of size $n$ where the group element bases are known ahead of time (i.e., fixed-base) and each scalar is $< B$
    • $\vmsm{n}{< B}$ for a single multi-scalar multiplication (MSM) in $\Gr$ of size $n$ where the group element bases are NOT known ahead of time (i.e., variable-base) and each scalar is $< B$
  • Multilinear extensions (MLEs)
  • The finite field $\F$ is of prime order $p$

Overview

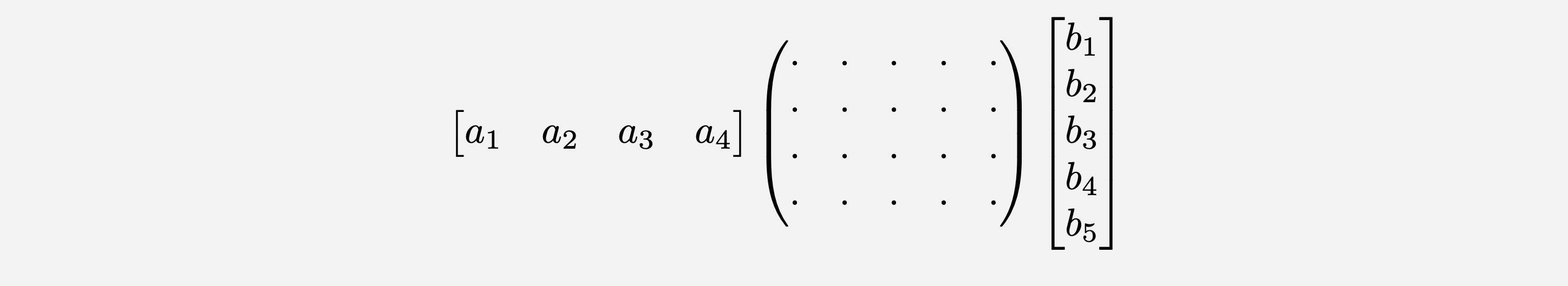

The main idea in Hyrax is that, for a row vector $\term{\a}\in\F^{1\times n}$, a column vector $\term{\b}^\top \in \F^m$ and a matrix $\term{\mat{A}}\in \F^{n\times m}$, you can express a dot product as: \begin{align} \label{eq:hyrax} \sum_{i\in[n), j\in[m)} a_i \cdot M_{i,j} \cdot b_j = \emph{\a\cdot \mat{M}\cdot \b^\top} &\bydef \underbrace{\a}_{\in\F^{1\times n}} \cdot \underbrace{\begin{bmatrix} \mat{M}_0 \cdot \b^\top\\
\mat{M}_1 \cdot \b^\top\\
\vdots &\\
\mat{M}_{n-1} \cdot \b^\top\\
\end{bmatrix}}_{\in \F^n}\\
%\label{eq:hyrax-rows} &\bydef \underbrace{\begin{bmatrix} %| & | & & |\\
\a \cdot \mat{M}_0^\top & \a \cdot \mat{M}_1^\top & \cdots & \a \cdot \mat{M}_{m-1}^\top\\
%| & | & & |\\
\label{eq:hyrax-cols} \end{bmatrix}}_{\in\F^{1\times m}}\cdot\underbrace{\b^\top}_{\in\F^m} \end{align} where $\term{\mat{M}_i}\in\F^{1\times m}$ is the $i$th row in $\mat{M}$ and $\term{\mat{M}^\top_j}\in\F^n$ is the $j$th column.

Why❓ (Click to expand 👇) \begin{align} \a\cdot \mat{M}\cdot \b^\top &= \a\cdot \left( \begin{bmatrix} M_{0,0} & M_{0,1} & \ldots & M_{0,m-1}\\\ M_{1,0} & M_{1,1} & \ldots & M_{1,m-1}\\\ \vdots & \vdots & \ddots & \vdots \\\ M_{n-1,0} & M_{n-1,1} & \ldots & M_{n-1,m-1} \end{bmatrix} \cdot \begin{bmatrix} b_0\\\ b_1\\\ \vdots\\\ b_{m-1}\end{bmatrix} \right)\\\ &= \a\cdot \begin{bmatrix} M_{0,0}\cdot b_0 + M_{0,1}\cdot b_1 + \cdots + M_{0,m-1}\cdot b_{m-1} \\\ M_{1,0}\cdot b_0 + M_{1,1}\cdot b_1 + \cdots + M_{1,m-1}\cdot b_{m-1} \\\ \vdots \\\ M_{n-1,0}\cdot b_0 + M_{n-1,1}\cdot b_1 + \cdots + M_{n-1,m-1}\cdot b_{m-1} \end{bmatrix} \\\ &= \begin{bmatrix}a_0 & a_1 & \cdots & a_{n-1}\end{bmatrix} \cdot \begin{bmatrix} \sum_{j\in[m)} M_{0,j} \cdot b_j \\\ \sum_{j\in[m)} M_{1,j} \cdot b_j \\\ \vdots \\\ \sum_{j\in[m)} M_{n-1,j} \cdot b_j \end{bmatrix} \\\ &= \left(a_0 \sum_{j\in[m)} M_{0,j} \cdot b_j\right) + \left(a_1 \sum_{j\in[m)} M_{1,j} \cdot b_j\right) + \cdots + \left(a_{n-1} \sum_{j\in[m)} M_{n-1,j} \cdot b_j\right)\\\ &\goddamnequals \sum_{i\in[n), j\in[m)} a_i \cdot M_{i,j} \cdot b_j \end{align}

Hyrax represents an MLE $\term{f(\X,\Y)}\in \MLE{n,m}$ as a matrix $\mat{M}$, where each row $\emph{\mat{M}_i} \bydef (f(\i,\j))_{j\in[m)}$. Put differently, $\term{M_{i,j}}\bydef f(\i,\j)$.

Hyrax commits to $f$ by individually committing to the rows $\mat{M}_i$ using a hiding Pedersen vector commitment as: \begin{align} \term{C_i} \gets \term{r_i} \cdot \term{H} + \mat{M}_i \cdot \term{\G} = r_i\cdot H+ \sum_{j\in[m)} f(\i, \j) \cdot G_j\in \Gr \end{align} where $\emph{\G,H}\in\Gr^{m+1}$ is the commitment key and $r_i\randget \F$. This yields an $n$-sized commitment $\C\bydef(C_i)_{i\in[n)}$.

An opening proof for $z\equals f(\x,\y)$, can be framed through the lens of Eq. \ref{eq:hyrax}: \begin{align} z &=\sum_{i\in[n), j\in[m)} \eq(\x, \i) \cdot \eq(\y,\j) \cdot f(\i,\j)\\
&=\sum_{i\in[n), j\in[m)} \eq(\x, \i) \cdot M_{i,j} \cdot \eq(\y,\j)\\
&\bydef \sum_{i\in[n), j\in[m)} a_i \cdot M_{i,j} \cdot b_j =\a\cdot\mat{M}\cdot\b^\top \end{align} where $\a \bydef (\eq(\x,\i))_{i\in[n)}$ and $\b \bydef (\eq(\y, \j))_{j\in[m)}$.

What does an opening proof look like exactly?

First, both the prover and the verifier compute the $\a,\b$ vectors from $\x$ and $\y$.

Second, the verifier uses $\a$ and the $C_i$’s to derive a commitment $\term{D}$ to the vector $\a \cdot \mat{M} \in \F^{1\times m}$ from Eq. \ref{eq:hyrax-cols}: \begin{align} \term{D} \gets \sum_{i\in[n)} a_i\cdot D_i &= \sum_{i\in[n)} a_i\cdot(r_i \cdot H + \mat{M}_i\cdot \G)\\
&= \sum_{i\in[n)} (a_i\cdot r_i) \cdot H + \sum_{i\in[n)} a_i\cdot\left(\sum_{j\in[m)} M_{i,j} \cdot G_j\right)\\
&\bydef \term{u}\cdot H + \sum_{i\in[n)}\sum_{j\in[m)} (a_i\cdot M_{i,j}) \cdot G_j\\
&= u\cdot H + \sum_{j\in[m)}\left(\sum_{i\in[n)} (a_i\cdot M_{i,j})\right) \cdot G_j\\
&= u\cdot H + \sum_{j\in[m)}(\a\cdot \mat{M}^\top_j) \cdot G_j\\
\end{align} (This can be generalized into a nicer homorphic property of such Pedersen matrix commitments.)

Third, the prover computes $\a\cdot \mat{M}$ via $m$ inner-products in $\F$ of size $n$ each (as per Eq. \ref{eq:hyrax-cols}).

Fourth, the prover gives the verifier a size-$m$ inner-product argument (IPA) proof1 that $z = (\a \cdot \mat{M})\cdot\b^\top$.

Lastly, the verifier checks the IPA proof against (1) the commitment $D$ to $\a\cdot{\mat{M}}$ and (2) $\b$.

To commit to MLEs $f\in\MLE{N}$, Hyrax is typically used with $n=m=\sqrt{N}$, yielding sublinear-sized commitments & proofs and sublinear-time verifier. The proving time will be dominated by the $\sqrt{N}$-sized IPA.

ZK construction

$\mathsf{Hyrax}_\mathsf{ZK}.\mathsf{Setup}(1^\lambda, \nu,\mu) \rightarrow (\mathsf{vk},\mathsf{ck})$

Notation:

  • $n \gets 2^\nu$ denotes the # of matrix rows
  • $m \gets 2^\mu$ denotes the # of matrix columns
  • $N = n\cdot m\bydef 2^{\nu + \mu}$ denotes the total # of entries in the matrix

Pick random generators:

  • $(\G,H)\randget\Gr^{m+1}$
  • $\vk\gets (n, \G,H)$
  • $\ck\gets \vk$

$\mathsf{Hyrax}_\mathsf{ZK}.\mathsf{Commit}(\mathsf{ck}, f(\boldsymbol{X},\boldsymbol{Y}); \r) \rightarrow (\boldsymbol{C},\aux)$

Let:

  • $\emph{\mat{M}}\in\F^{n\times m}$ denote the matrix represention of the MLE $f$.

Compute the commitment:

  • $(n,\G, H)\parse \ck$
  • $C_i \gets r_i\cdot H + \mat{M}_i\cdot \G,\forall i\in[n)$
  • $\aux \gets \r$

Computing each commitment takes an $\msm{m+1}\Rightarrow n\times\msm{m+1}$ in total. (Committing will be faster for sparse matrices, but in the Spartan setting, we don’t care about it.)

$\mathsf{Hyrax}_\mathsf{ZK}.\mathsf{Open}(\ck, f(\boldsymbol{X},\boldsymbol{Y}), (\boldsymbol{x}, \boldsymbol{y}), z; \aux, \C)\rightarrow \pi$

Parse commitment key and auxiliary data:

  • $(n,\G,H)\parse \ck$
  • $\r\gets\aux$

Compute the opening proof:

  • $\a\gets (\eq(\x, \i))_{i\in[n)}\in\F^{1\times n}$
  • $\b \gets (\eq(\y, \j))_{j\in[m)}\in \F^{1\times m}$
  • $\A\gets \a\cdot \mat{M}\in \F^{1\times m}$
  • $u\gets \sum_{i\in[n)} a_i\cdot r_i$
    • This will be the randomness for the commitment to $\A$, which the verifier will homomorphically-reconstruct
  • $\pi \gets \ipaProve(\prk_\ipa, \A, \b, z; u)$ where $\prk_\ipa = (\G,H)$
    • This will be a ZK IPA proof that $z = \A\cdot \b^\top = \a\cdot\mat{M}\cdot\b^\top \bydef f(\x,\y)$

ZK opening time

First, recall that computing all Lagrange evaluations for a size-$n$ MLE takes $2n$ $\F$ multiplications.

  • $\a$ takes $\Fmul{2n}$
  • $\b$ takes $\Fmul{2m}$
  • $\A$ takes $m \times(\Fmul{n}+\Fadd{n})=\Fmul{nm}+\Fadd{nm}$ because we are inner-producting $\a$ with every column $\mat{M}_j^\top\in\F^n$.
    • When the matrix is “sparse”, i.e., only has $\term{t}\bydef\sum_{j\in[m)} \term{t_j} \ll nm$ non-zero entries, with column $j$ having $\emph{t_j}$ non-zero entries, then this cost lowers to $\sum_{j\in[m)} (\Fmul{t_j}+\Fadd{t_j}) = \Fmul{t} + \Fadd{t}$
  • $\vec{u}$ takes $\Fmul{n}+\Fadd{n}$
  • $\pi$ takes $\term{\ipaProve(m)}$, which denotes the time of a size-$m$ IPA prover
    • e.g., $O(\Gmul{m})$ for Bulletproofs1

In total, we have: \begin{align} &\underbrace{\Fmul{(2n + 2m)}}_{\a, \b} + \underbrace{(\Fmul{t} + \Fadd{t})}_{\A} + \underbrace{(\Fmul{n} + \Fadd{n})}_{\vec{u}} + \ipaProve(m)= \\
\def\zkopen{\Fmul{(3n + 2m + t)} + \Fadd{(t + n)} + \ipaProve(m)} = &\zkopen \end{align}

$\mathsf{Hyrax}_\mathsf{ZK}.\mathsf{Verify}(\vk, \boldsymbol{C}, (\boldsymbol{x}, \boldsymbol{y}), z; \pi)\rightarrow \{0,1\}$

  • $(n,\G, H)\parse \vk$
  • $\a\gets (\eq(\x, \i))_{i\in[n)}\in\F^{1\times n}$
  • $\b \gets (\eq(\y, \j))_{j\in[m)}\in \F^{1\times m}$
  • $D \gets \sum_{i\in[n)} a_i\cdot C_i$
    • This will be the Pedersen commitment to $\A\bydef\a\cdot\mat{M}$
  • $\vk_\ipa\gets (\G,H)$
  • assert $\ipaVer(\vk_\ipa, D, \b, z; \pi) \equals 1$

ZK verifier time

  • $\a$ takes $\Fmul{2n}$ (recall from here)
  • $\b$ takes $\Fmul{2m}$
  • $D$ takes $\msm{n}$
  • Verfiying $\pi$ takes $\term{\ipaVer(m)}$, which denotes the time of a size-$m$ IPA verifier (e.g., $O(\msm{m})$ for Bulletproofs1)

In total, we have: \begin{align} \def\zkverify{\Fmul{2(n + m)} + \msm{n} + \ipaVer(m)} \zkverify \end{align}

ZK performance

We use $\hyraxZknm$ to refer to the $\hyraxZk$ scheme set up with $\hyraxZkSetup(1^\lambda, \log_2{n},\log_2{m})$. We use $\hyraxZkSqN$ to refer to $\hyraxZk^{\sqN,\sqN}$.

Setup, hiding commitments and ZK proof sizes

Scheme $\ck$ $\vk$ Commit time $\C$ $\aux$ $\pi$
$\hyraxZknm$ $\Gr^{n+1},\ck_\ipa$ $\Gr^{n+1},\vk_\ipa $ $n\cdot\msm{m+1}$ $\Gr^n$ $\r\in\F^n$ $\pi_\ipa(m)$
$\hyraxZkSqN$ $\Gr^{\sqN+1},\ck_\ipa$ $\Gr^{\sqN+1},\vk_\ipa$ $\sqN\cdot\msm{\sqN+1}$ $\Gr^\sqN$ $\r\in\F^\sqN$ $\pi_\ipa(\sqN)$

ZK openings at arbitry points

Recall that $\emph{t}\le nm$ denotes the # of non-zero entries in the MLE $f$ or, equivalently, matrix $\mat{M}$.

Scheme Open time (random) Verifier time
$\hyraxZknm$ $\zkopen$ $\Fmul{2(n+m)} + \msm{n} + \ipaVer(m)$
$\hyraxZkSqN$ $\zkverify$ $\Fmul{4\sqN} + \msm{\sqN} + \ipaVer(\sqN)$

ZK openings at points on the hypercube

Scheme Open time (hypercube) Verifier time
$\hyraxZknm$ $\ipaProve(m)$ $\ipaVer(m)$
$\hyraxZkSqN$ $\ipaProve(\sqN)$ $\ipaVer(\sqN)$

Non-ZK construction

$\mathsf{Hyrax}.\mathsf{Setup}(1^\lambda, \nu,\mu) \rightarrow (\mathsf{vk},\mathsf{ck})$

Pick random generators (reusing $\hyraxZk$ notation):

  • $\G\randget\Gr^m$
  • $\vk\gets (n, \G)$
  • $\ck\gets \vk$

$\mathsf{Hyrax}.\mathsf{Commit}(\mathsf{ck}, f(\boldsymbol{X},\boldsymbol{Y})) \rightarrow \boldsymbol{C}$

Recall that $\mat{M}\in\F^{n \times m}$ represents the MLE $f\in\MLE(n,m)$.

  • $(n,\G)\parse \ck$
  • $C_i \gets \mat{M}_i\cdot \G,\forall i\in[n)$

Computing each commitment takes an $\msm{m}\Rightarrow n\times\msm{m}$ in total. (Committing will be faster for sparse matrices, but in the Spartan setting, we don’t care about it.)

$\mathsf{Hyrax}.\mathsf{Open}(\ck, f(\boldsymbol{X},\boldsymbol{Y}), (\boldsymbol{x}, \boldsymbol{y}), z; \C)\rightarrow \pi$

Parse commitment key:

  • $(n,\G)\parse \ck$

Compute the opening proof:

  • $\a\gets (\eq(\x, \i))_{i\in[n)}\in\F^{1\times n}$
  • $\b \gets (\eq(\y, \j))_{j\in[m)}\in \F^{1\times m}$
  • $\A\gets \a\cdot \mat{M}\in \F^{1\times m}$
  • $\pi\gets \A$

A more succinct but less computationally-efficient variant, denoted by $\hyrax_\ipa$, would compute an IPA proof that $z = \A\cdot \b^\top$ instead of sending $\A$ over and having the verifier manually check.

Non-ZK opening time

  • $\a$ takes $\Fmul{2n}$ (recall from here)
  • $\b$ takes $\Fmul{2m}$
  • $\A$ takes $\Fmul{nm}+\Fadd{nm}$ in the worst case, and $\Fmul{t}+\Fadd{t}$ in the sparse case with $\emph{t}$ non-zero entries in $\mat{M}$ (recall from here)

In total, we have $\Fmul{(2n + 2m + t)} + \Fadd{t}$ proving work for vanilla $\hyrax$. The $\hyrax_\ipa$ variant would require extra $\emph{\ipaProve(m)}$ work.

When $(\x,\y)$ are on the hypercube: (1) $\a$ and $\b$ are 0 everywhere except at location $x$ and $y$, and (2) $\A$ is just the $x$th row of $\mat{M}$. So opening time involves no computation. The proof remains the same size though.

$\mathsf{Hyrax}.\mathsf{Verify}(\vk, \boldsymbol{C}, (\boldsymbol{x}, \boldsymbol{y}), z; \pi)\rightarrow \{0,1\}$

  • $(n,\cdot)\parse \vk$
  • $\a\gets (\eq(\x, \i))_{i\in[n)}\in\F^{1\times n}$
  • $\b \gets (\eq(\y, \j))_{j\in[m)}\in \F^{1\times m}$
  • $D \gets \sum_{i\in[n)} a_i\cdot C_i$
    • This will be the Pedersen commitment to $\A\bydef\a\cdot\mat{M}\in\F^{1\times m}$
  • $\A\parse \pi$
  • assert $D\equals \A\cdot\vect{G}$
  • assert $z\equals \A\cdot \b^\top$

The more succinct but less computationally-efficient $\hyrax_\ipa$ variant would verify an IPA proof instead of checking that $\A$ is committed in $D$ and manually re-computing $z$.

Non-ZK verifier time

  • $\a$ takes $\Fmul{2n}$ (recall from here)
  • $\b$ takes $\Fmul{2m}$
  • $D$ takes $\vmsm{n}{< p}$ because:
    • the $a_i$ scalars are arbitrary $\eq(\x,\i)$ evaluations
    • the bases $C_i$ are the commitment which is not necessarily known ahead of time
  • Verifying $\A$ against $D$ takes $\fmsm{m}{<p}$
    • the exponents in $\A$ will be arbitrary (see the opening algorithm)
    • the bases are fixed in the commitment key
  • Although this last $D \equals \A \cdot \G$ check can be turned into a single $\msm{n+m}$ as $\left(\A\cdot (-\G)\right)\cdot \sum_{i\in[n)} a_i \cdot C_i\equals 1$, I believe that may actually be slower, since the fixed-base MSM should be much faster than the variable-base one and we do not have MSM algorithms that work on combinations of the two!
  • Verifying $z$ is a size-$m$ inner product, so takes $\Fmul{m}+\Fadd{m}$

In total, we have $\Fmul{(2n + 3m)} + \Fadd{m} + \vmsm{n}{<p} + \fmsm{m}{<p}$ verifier work for vanilla $\hyrax$. The $\hyrax_\ipa$ variant would take $\Fmul{2(n+m)} + \vmsm{n}{<p} + \ipaVer(m)$ (because no decommitment check for $D$ and no $\A\cdot\b^\top$ inner-product).

When $(\x,\y)$ are on the hypercube: (1) $\a$ and $\b$ are 0 everywhere except at location $x$ and $y$, (2) $D$ is just the commitment $C_x$ to the $x$th row (3) $\A$ is verified directly against $C_x$ via an $\msm{m}$ (4) $z$ is verified by checking if $z \equals A_y$

Non-ZK performance

We use $\hyraxnm$ to refer to the $\hyrax$ scheme set up with $\hyraxSetup(1^\lambda, \log_2{n},\log_2{m})$. We use $\hyraxSqN$ to refer to $\hyrax^{\sqN,\sqN}$.

Setup, commitments and proof sizes

Scheme $\ck$ $\vk$ Commit time $\C$ $\aux$ $\pi$
$\hyraxnm$ $\Gr^n$ $\Gr^n$ $n\cdot\msm{m}$ $\Gr^n$ $\bot$ $\F^m$
$\hyraxSqN$ $\Gr^\sqN$ $\Gr^\sqN+1$ $\sqN\cdot\msm{\sqN}$ $\Gr^\sqN$ $\bot$ $\F^\sqN$

Non-ZK openings at arbitry points

Recall that $\emph{t}\le nm$ denotes the # of non-zero entries in the MLE $f$ or, equivalently, matrix $\mat{M}$.

Scheme Open time (random) Verifier time
$\hyraxnm$ $\Fmul{(2n+2m+t)} + \Fadd{t}$ $\Fmul{(2n+3m)} + \Fadd{m} + \vmsm{n}{<p} + \fmsm{m}{<p}$
$\hyraxSqN$ $\Fmul{(4\sqN+t)} + \Fadd{t}$ $\Fmul{5\sqN} + \Fadd{\sqN} + \vmsm{\sqN}{<p} + \fmsm{\sqN}{<p}$

Non-ZK openings at points on the hypercube

Scheme Open time (hypercube) Verifier time
$\hyraxnm$ $\bot$ $\msm{n}$
$\hyraxSqN$ $\bot$ $\msm{\sqN}$

Conclusion

Your thoughts or comments are welcome on this thread.

References

For cited works, see below 👇👇

  1. Bulletproofs: Short Proofs for Confidential Transactions and More, by B. Bünz and J. Bootle and D. Boneh and A. Poelstra and P. Wuille and G. Maxwell, in 2018 IEEE Symposium on Security and Privacy (SP), 2018  2 3
